Assembled In Superior, WI. Custom-Specified For Your Fill Station.
Simple, Strong, Dependable
North Shore Compressor now offers our own line of high-pressure breathing air compressors and SCBA/SCUBA containment fill stations — assembled at our Superior, WI facility with components made to our specifications, giving us direct control over quality and the ability to spec every system to your exact pressure, fill-volume, and power requirements.
Systems Assembled To Order
Every unit is assembled locally at our Superior, WI facility from components made to our specifications. Below are the two core configurations we assemble most often — a high-pressure electric breathing air compressor, and a 2-place containment fill station for fire and SCUBA use. Both can be custom-specified to your power, pressure, and fill-volume needs.

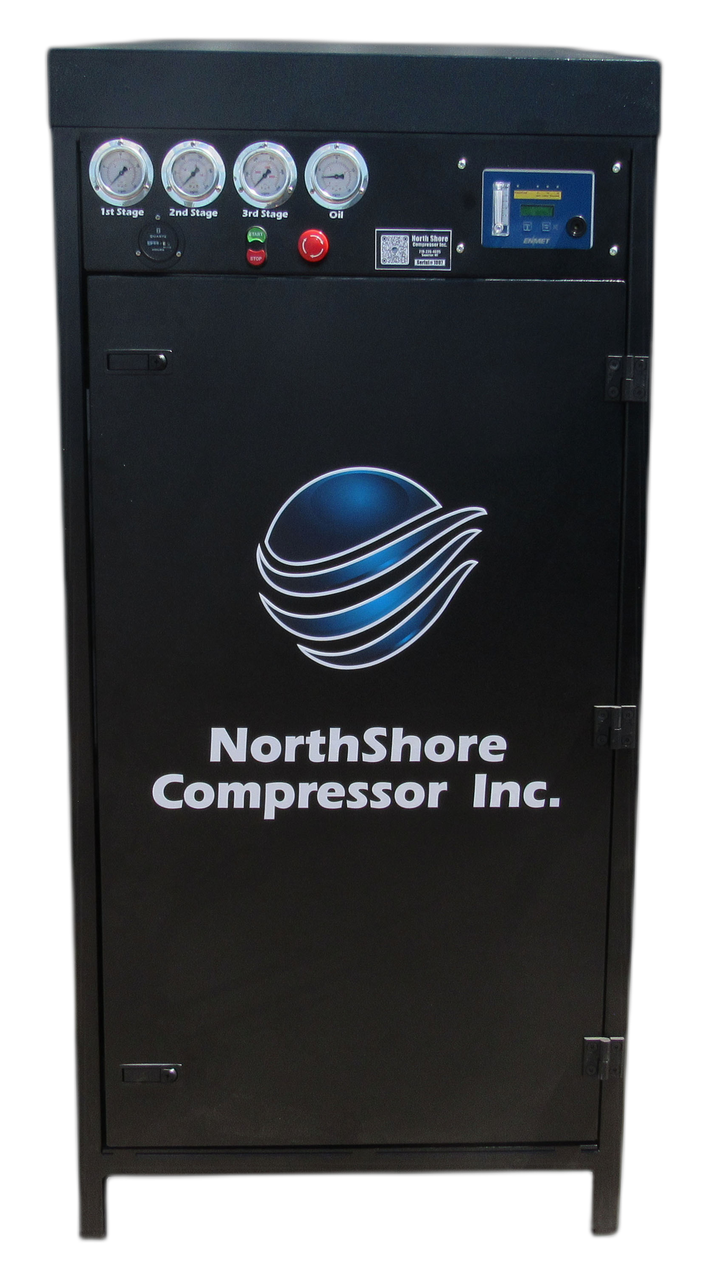

North Shore Compressor — Electric Series
A multi-stage, high-pressure breathing air compressor built for continuous-duty fill station use in fire, SCUBA, and industrial applications. Reliable, powerful, and built for life.
| Charging Rate | 9 / 16 / 23 / 26 CFM |
| Horsepower | 7.5 / 10 / 15 / 20 HP |
| Voltage / Frequency | 230V / 60Hz |
| Dimensions (W x D x H) | 32″ x 32″ x 62″ |
| Weight | ~1,000 lbs. |
| Noise Level | 70 dB |
| Purification System | Single / Double 3 lb. Filter |
- CGA Grade E breathing air quality with automatic system shutdown at 5 PPM CO
- Pipes, fittings, and hardware in AISI 316 stainless steel
- Advanced condensate separation — intermediate separator after 2nd stage, double-effect high-pressure final separator
- High-efficiency cooling and high-flow 1st, 2nd, and 3rd stage valves built for continuous-duty operation
- Forced lubrication with low-pressure gear pump and synthetic oil formulated for HP compressors
- Forged steel crankshaft, forged aluminum connecting rods, roller bearings for intensive work
Available in 7.5 HP single- or three-phase (NEMA 6-50), single-phase 10 HP (NEMA 6-50), and three-phase 10/15/20 HP (NEMA L15-30 / CS8365 50A) electrical configurations. Different voltage/frequency available on request.

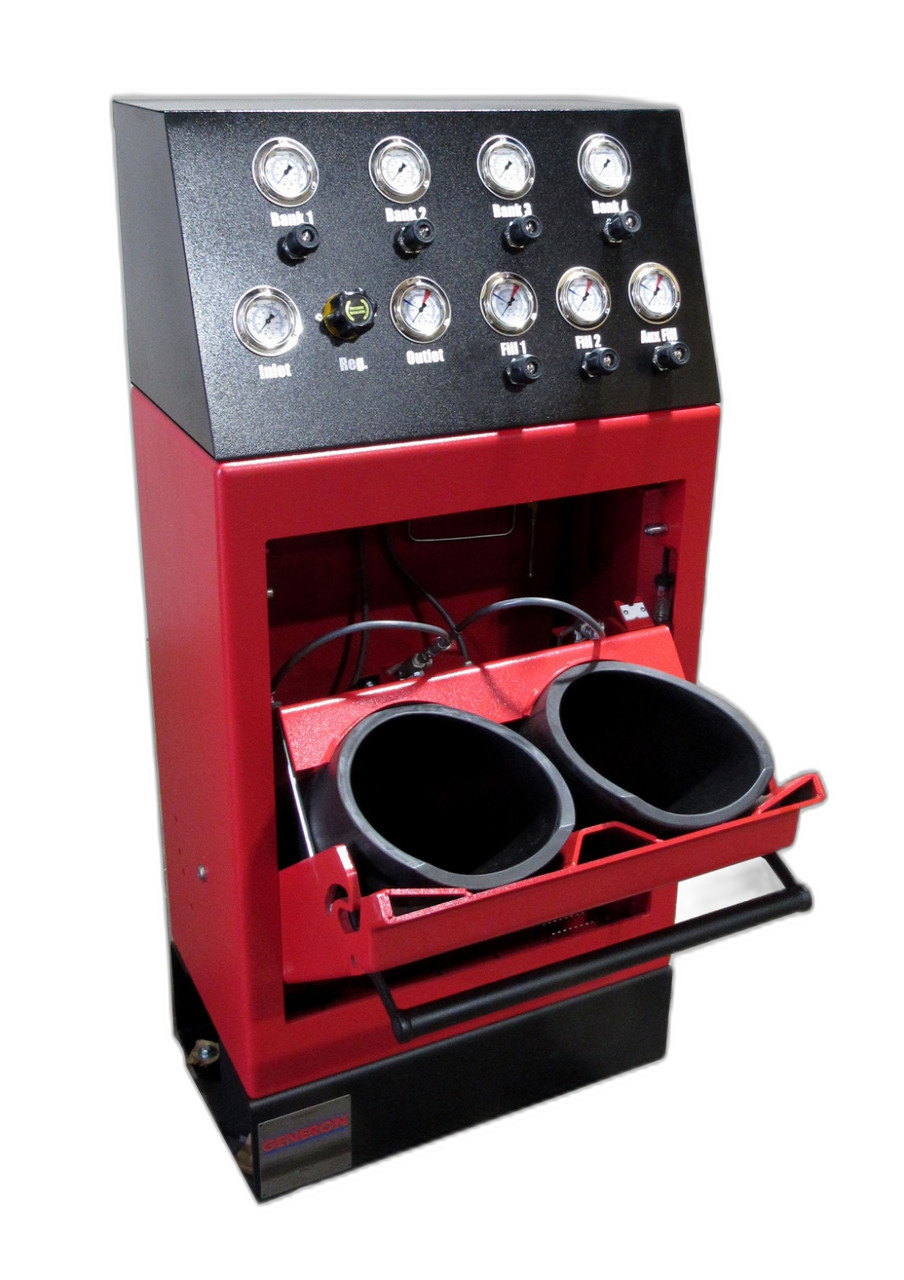

2-Place Containment Fill Station
Designed to address key safety requirements and ease of operation for both the fire and SCUBA markets. Fills one or two cylinders at a time inside a fully contained enclosure.
- Designed and tested in accordance with NFPA 1901
- System design verified by a DNV/GL-witnessed explosive test, simulating the rupture of a fully pressurized 5,500 psig, 111 ft³ SCBA cylinder as mandated by NFPA 1901
- Contains all components of an explosion within the fill station, directing concussive force away from the operator
- Safety interlock — will not pressurize a cylinder unless all interlocks are established
- Ease of use — door-open mechanism optimized to operate with only 8 lbs. of force
- Proudly assembled in the USA
Built To Standard, Verified By Testing
Every North Shore system is engineered around the same safety and air-quality standards that fire departments, dive shops, and industrial safety officers require.
Have Questions About Specifying Your System?
Every North Shore compressor and fill station is custom-specified and assembled to order. Tell us your pressure, fill-volume, and power requirements, and we'll help you spec the right unit — call, email, or send a message and a compressor specialist will follow up.
